Portable mixer A720 series

Here we introduce a popular general-purpose mixer.

Portable mixer A720-BX series

This type is integrated mixer body and inverter.

Portable mixer PSE compatible type

Product that complies with the Electrical Appliance and Material Safety Law (PSE).

SATAKE EG Mixer

Here we introduce a small mixer best suited for resin containers up to 1 ton. It is a small mixer ideal for testing and manufacturing at small to medium capacity (10 to 100 L). It can be used immediately when connected to the power supply, and the rotation speed can be easily changed with the operation panel. Various types of mounting are possible with the new clamp.

SATAKE～1tResin container

Here we introduce a small mixer best suited for resin containers up to 1 ton. The self-opening and closing type dedicated mixing blades are specially designed to be stored when operation is stopped and open when operation starts. For this reason, the mixer can be put in and out of the container even when the opening is small.

SATAKE Floatingmag Mixer

Here we introduce a sealless & magnet type mixer that is ideal for pharmaceutical and cosmetic fields. By adopting a newly developed magnetic circuit, the mixing blades completely float. For this reason, fixing bolts become unnecessary, making installation and removal easier. SiC-SiC bearings suitable for pharmaceutical manufacturing, etc. are adopted. The product is also suitable for SIP (Sterilization-In-Place) and CIP (Cleaning-In-Place).

SATAKE Super Shear Mixer

Here we introduce the high dispersion mixer "Super Shear Mixer". Observe the state of liquid-liquid dispersion of water-kerosene.

SATAKE Super Mix
“MR210 Impeller”

Supermix MR210 impeller has a small blade area and a simple structure, but it can provide excellent fluidization and mixing.

SATAKE Super Mix
“HR320 Impeller”

Comparison video with conventional type that shows the decrease in required power and the increase in mixing effect.

New SATAKE Super Mix
“HSR100 Impeller”

Here we introduce a mixing blade (impeller) suitable for dissolving powder. It is a new type of impeller which can shorten the time for dissolving and avoids lumps.

New SATAKE Super Mix
”HSR100 Impeller”2

Here we introduce a mixing blade (impeller) suitable for dissolving powder. Compared with the conventional DS impeller, the time to complete dissolving has been shortened. (Inserted powder: food thickener CMC)

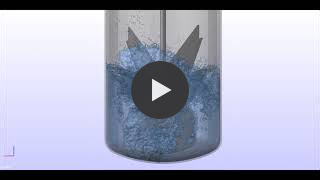

Cross Eva HRX300

Cross Eva HRX300 is the most suitable mixing blade for evaporation processes. While maintaining extremely high mixing and blending performance, it has a liquid splashing effect that can effectively utilize the heat transfer surface.

SATAKE Super Mix
“HS100 Turbine”

Supermix HS100 turbine is ideal for gas-liquid agitation such as microbial culture.

SATAKE Super Mix
“MR203 / LR500”

These blade series are suitable mainly for stirring high viscosity liquids.Special large blades "MR203" featuring serrated-blade and trapezoidal blade shape,and "LR500" with no central shaft and characterized by multi-stage inclined blades.Here is experiment comparing them with conventional blades.Both MR203 and LR500 can obtain excellent mixing action without mixing unevenness.

One touch coupling

It is a convenient optional item for the Portable Mixer. It is used for the mixing shaft part. Since the connecting part can be removed with a single touch without using a tool, it is ideal for cleaning shafts and impellers, and replacing tanks, etc.

Outer shaft cover

It is a optional item for the Portable Mixer. It prevents entanglement during operation to part where the mixing shaft is connected.

”High speed type"Portable mixer

"Fast type" Portable Mixer flow pattern. Suitable for forcibly adding powder and dissolving it.

”Medium speed type”Portable mixer

"Medium speed type" Portable Mixer flow pattern. Can be used for various applications such as general liquid-liquid mixing / dilution / dissolving.

”Low speed type”Portable mixer

"Low speed type" Portable Mixer flow pattern. Suitable for large-capacity applications such as slow mixing in storage tanks or applications where foaming is undesirable.

SupermixGD220

The GD220 impeller is ideal for water addition reactions. It is excellent in absorbing gas from the liquid surface and gas absorption performance . With this characteristic blade shape, it forms a strong drawing flow from the liquid surface to the bottom of the tank and a strong discharge flow from the bottom of the tank, achieving highly efficient gas absorption performance.

Cross Eva HRX300

Cross Eva HRX300 is the most suitable mixing blade for evaporation processes. While maintaining extremely high mixing and blending performance, it has a liquid splashing effect that can effectively utilize the heat transfer surface.

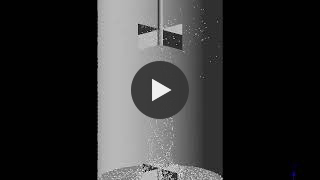

RB Mixing system

Mixing throughout the tank is done by generating a rising flow like a tornado using a swirling flow and a radial blade installed at the bottom of the tank. It is ideal for water treatment and other fields.

VMF　Reactor

"VMF Reactor" - ideal for animal cell cultures

3D floating iPS cell differentiation induction BioReactor "HiD 4×4"

VMF reactor

The VMF reactor is a vertical reciprocating motion type next-generation reciprocating mixer for cell culture that combines together excellent blending performance and gentle mixing.

MRF reactor

The MRF reactor has a simple shape with excellent cleaning ability, that is important in actual equipment, and similar culture results as during laboratory experiments can be reproduced during scale-up too.

Micro-bubble system animal cell culture BioReactor
VerSus Reactor

The VerSus reactor is a new and innovative BioReactor for animal cell culture in which the technology of “SPG membrane sparger*” by which micro-bubbles with extremely high homogeneity can be generated is fused with a VMF reactor.Through an efficient oxygen supply by the SPG membrane sparger, oxygen can be supplied efficiently without putting stress on the animal cells in the culture tank.Also, due to a decline in the DO air flow rate, a foam layer can be prevented.*SPG membrane sparger has been developed jointly by MIYAZAKI PREFECTURE INDUSTRIAL TECHNOLOGY CENTER and JGC Corporation.

Automotive Climatic Wind Tunnel

Simulates the actual driving environment such as temperature, humidity, wind speed, sunlight, rain, snow, etc., and can conduct various R & D tests such as engine / transmission cooling performance and car air conditioner comfort / control optimization.
